KSD-8009

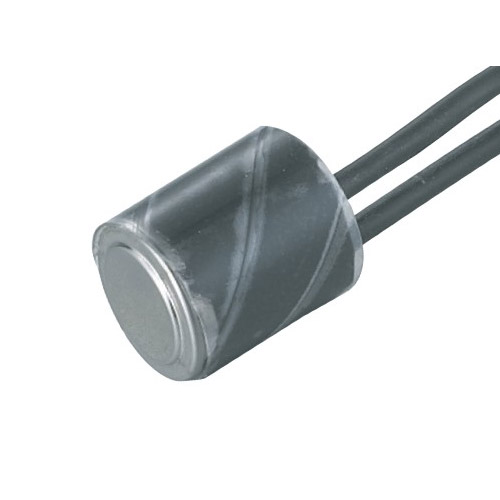

KSD-80 1/2(12.7MM)bi-metal thermostat is used for tempature control during defrost in the refrigerator and the ice machine, also can be used for automatic temperature controls in the refrigerator heating compensation and electric hearting defrosting. Its structure features application of resin to completely seal the electric parts, allowing to be installed in a narrow space and boasting humidity-oroffness and wet-proofness.

Main technical specification:

• Action characteristic: SPST
• Electric rating:AC250C 5A AC125V 10A
• Insulation Resistance: ≥100
• Action Temperature Range:1°F -194°F
